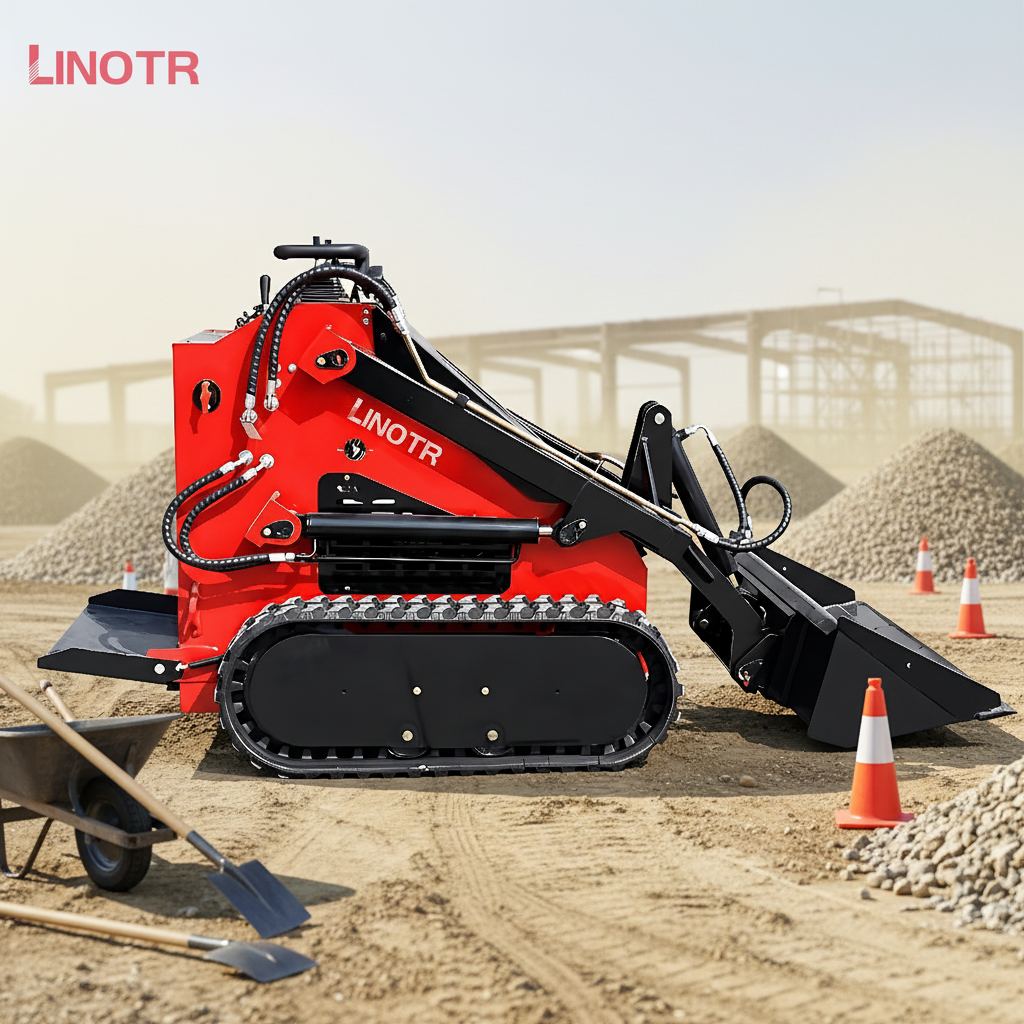

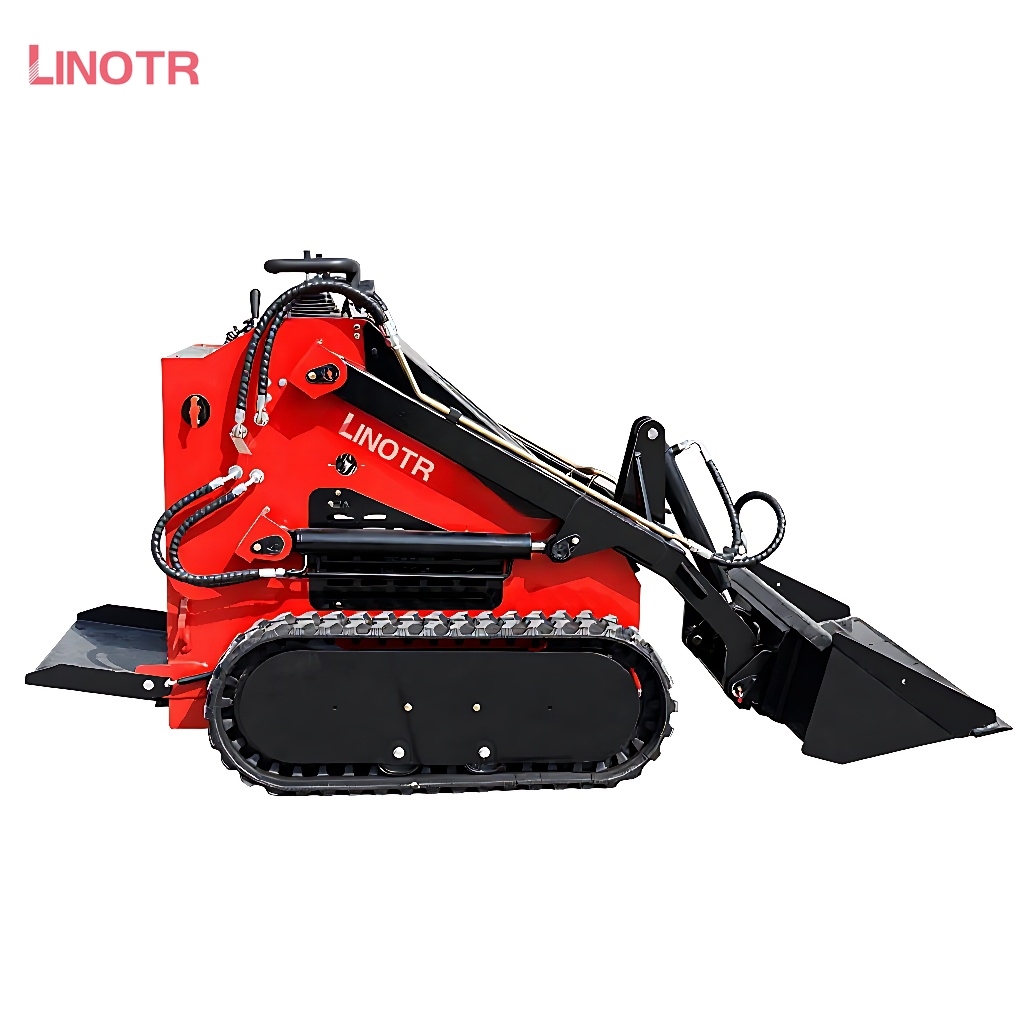

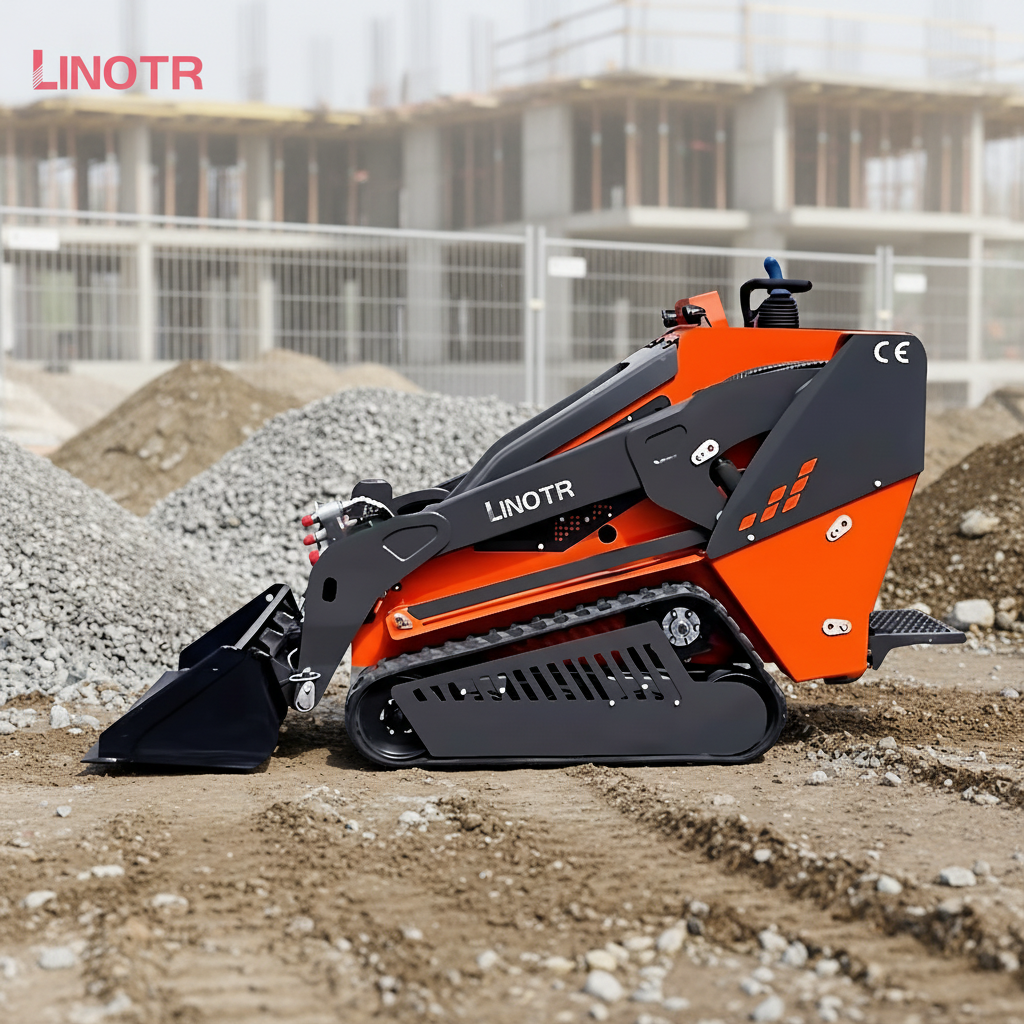

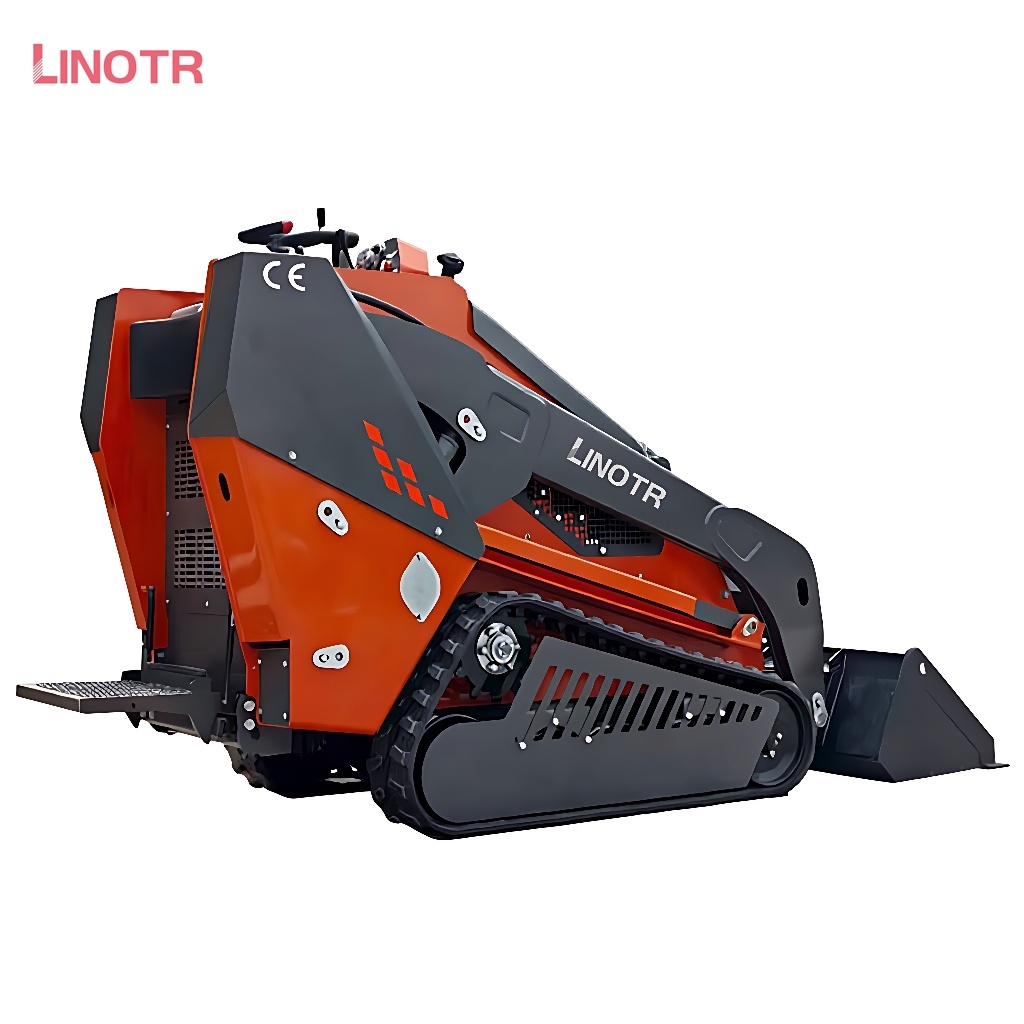

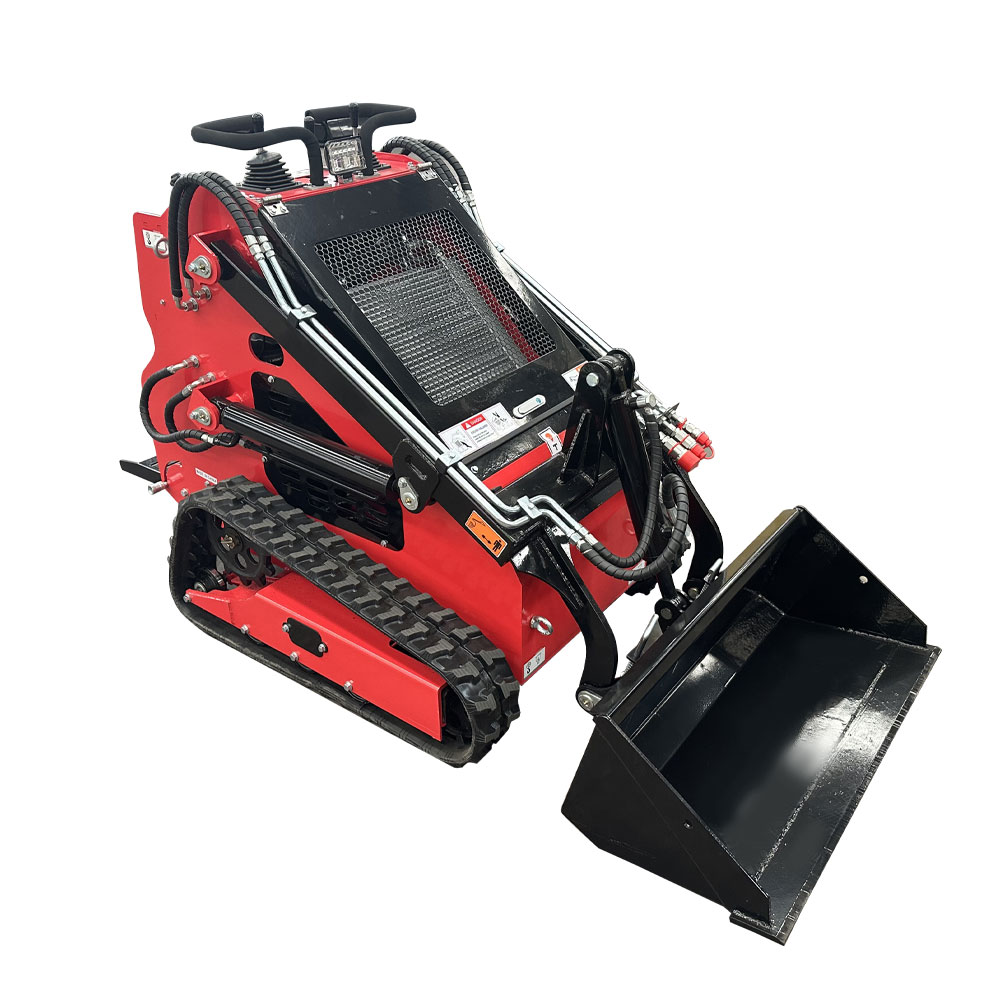

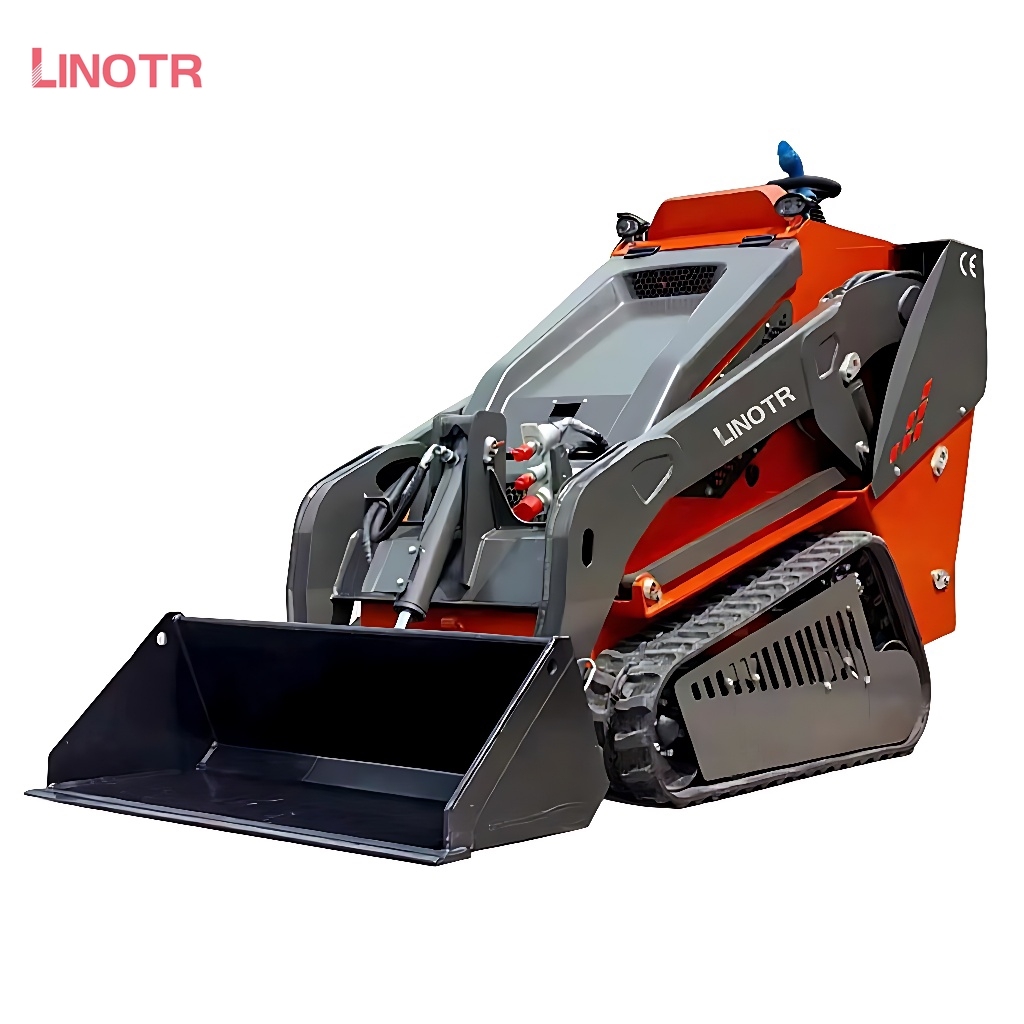

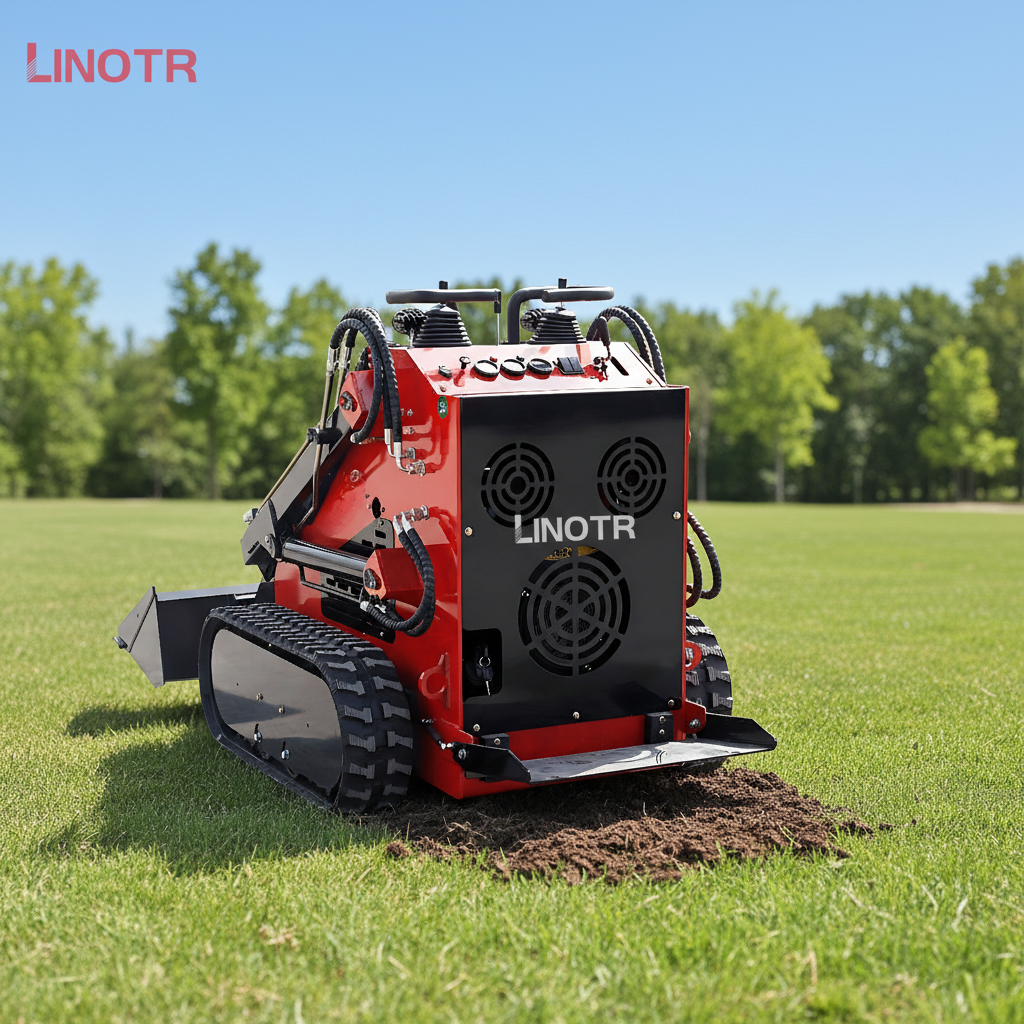

Model: LT360W Skid Steer Loader |
|||
|
performances |
Rated loading capacity |
kg |
220 |
|
Bucket volume |
m³ |
0.09 |
|
|
Maximum lifting force |
kg |
375 |
|
|
Working speed |
km/h |
0-6.5 |
|
|
Rated pressure |
Mpa |
17 |
|
|
Lifting time |
S |
4.5 |
|
|
Lowering time |
S |
3.5 |
|
|
Tipping time |
S |
1.5 |
|
|
Working weight |
kg |
720 |
|
|
Engine |
Engine name |
RATO Engine |
|
|
Model |
R420D |
||
|
Type of engine |
Gasoline Single Cylinder |
||
|
Output power |
8.5KW(15hp）/3600rpm |
||
|
Fuel consumption |
L/h |
≤4.1 |
|
|
Starting method |
electric start |
||
|
quantitative |
Fuel tank |
L |
6.7 |
|
Engine oil |
L |
1.1 |
|
|
Hydraulic oil tank |
L |
25 |
|
|
Overall Dimension |
Length x Width x Height |
mm |
2400X1030X1330 |
|
Packing size (wooden box) |
Length x Width x Height |
mm |
1700x1050x1350 |
