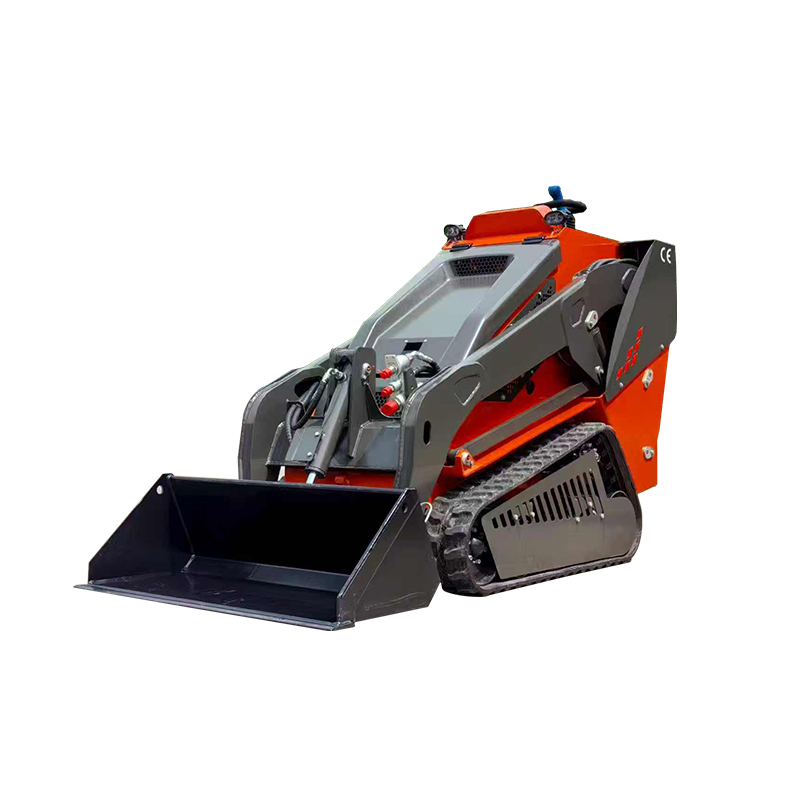

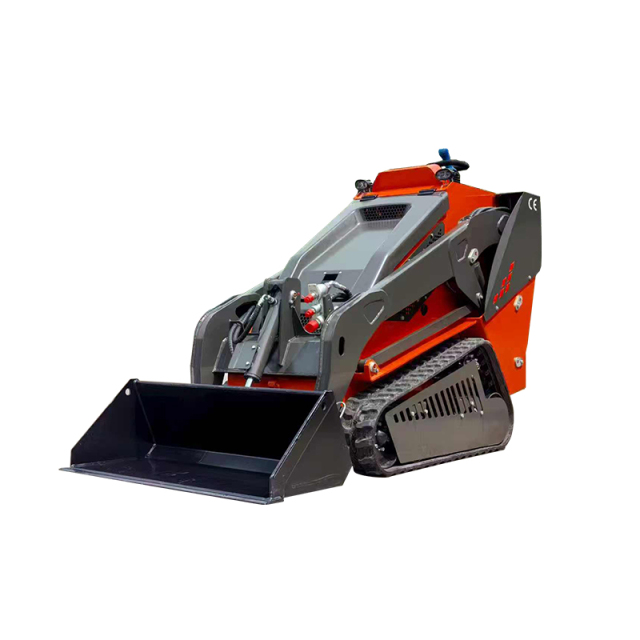

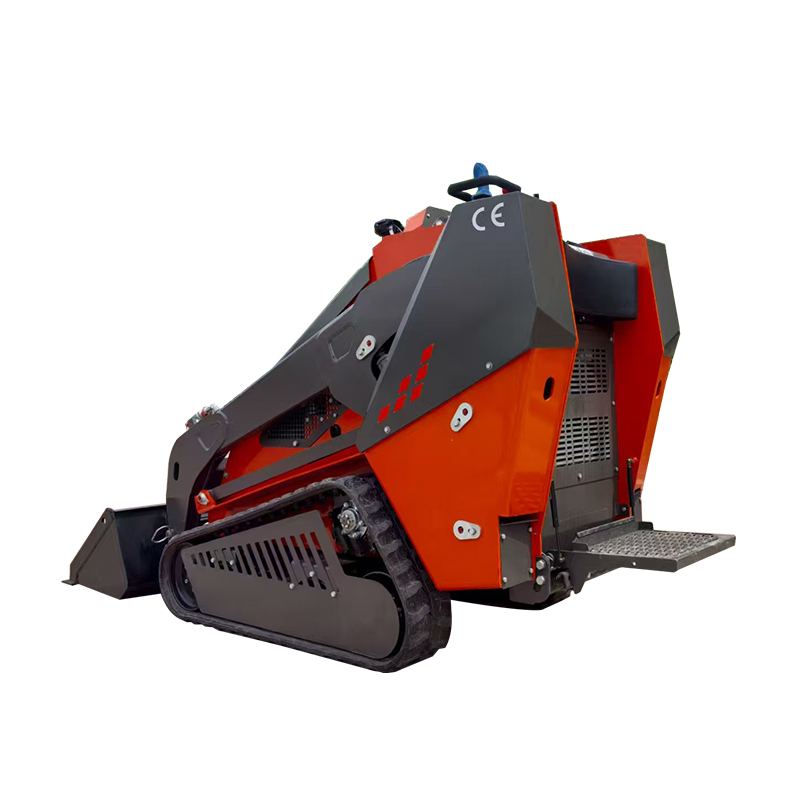

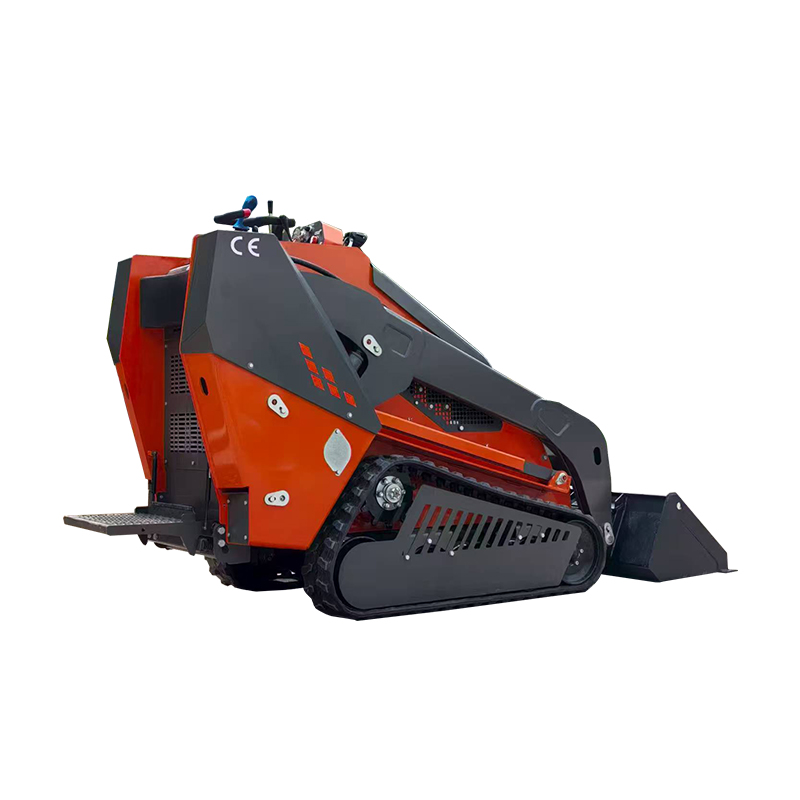

Model: LT1000 |
|
|
Item |
Metric |
|
Angle of departure |
25° |
|
Max dump angle |
45° |
|
Max.dump height |
1610mm |
|
Max .dump diatance |
605mm |
|
Min .ground clearance |
128mm |
|
Height of Foot pedal to ground |
228mm |
|
Max.lift height of boom |
2155mm |
|
Total height |
1670mm |
|
Total length (No bucket) |
2278mm |
|
Total length (with bucket) |
2835mm |
|
Max lift height of bucket |
2719mm |
|
Max /rotary angle of bucket |
81° |
|
Track length on the ground |
1065mm |
|
Turning radius （with bucket） |
1528mm |
|
Total width(No bucket) |
1035mm |
|
Trackbase |
835mm |
|
Bucket width |
1140mm |
|
Bucket capacity |
0.14 m3 |
|
Loading weight |
475kg |
|
Tipping ability |
1100kg |
|
Machine weight |
1780kg |
|
Traveling speed |
10km/h |
|
Track width |
200mm |
|
Hydraulic system pressure |
21Mpa |
|
Fuel tank capacity |
33L |
|
Hydraulic oil tank capacity |
30L |
|
Travel pump flow |
61.6L/min |
|
Working pump flow |
47.6L/min |
|
Engine Model |
KUBOTA D1105/PERKINS 403J-11 |
|
Rated power |
18.2KW/18.4KW(25HP) |
|
Rotating speed（rpm） |
3000 |
|
Noise（Db） |
≤93 |
|
Main pump |
Qty: 2 |
|
Accessories pump |
Qty: 1 |
|
Valve |
Qty :4 |
