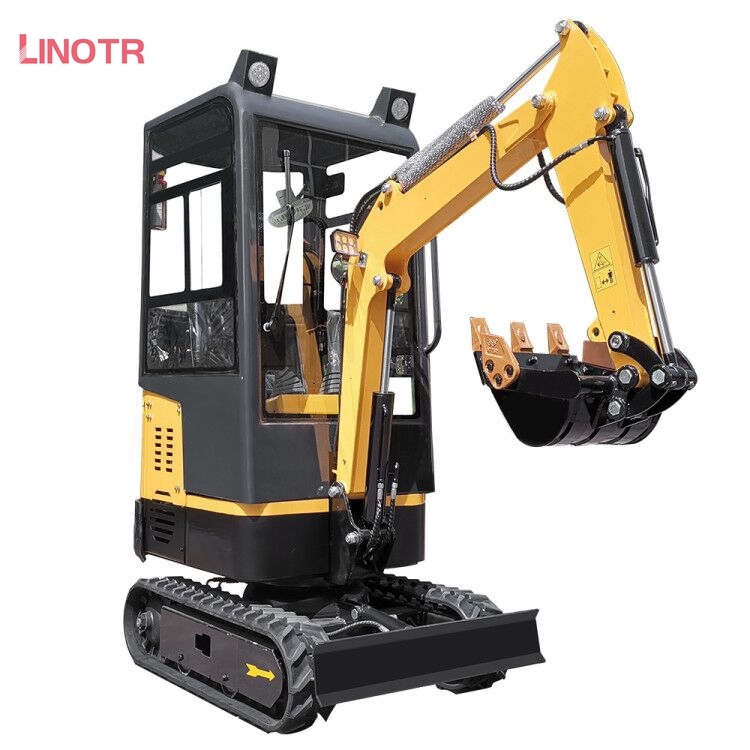

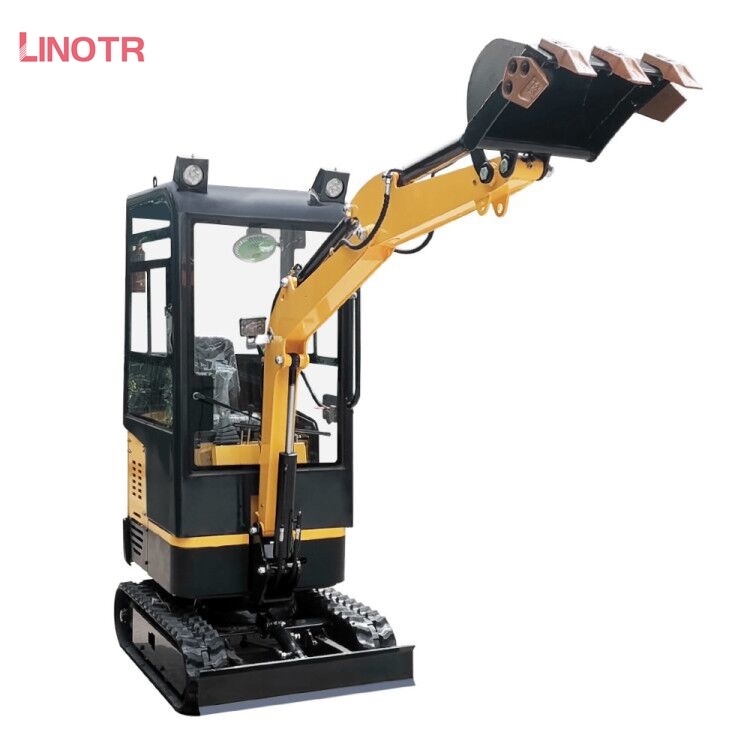

Model: LT10
|
|
|
Weight
|
1000kg
|
|
Digging bucket capacilty
|
0.025cbm/120kg
|
|
Bucket width
|
380mm
|
|
Engine
|
CHANGCHAI (192FAM)
|
|
Optional Engine
|
Briggs & Stratton Engine,Yanmar Engine, Koop Engine, Yanmar Engine
|
|
Bore stroke
|
Single cylinder, fan cool
|
|
Rated power
|
8.2 kw/3600r/min
|
|
Main pump
|
G5-6
|
|
Displacement
|
6.8ml/r
|
|
Swing motor
|
SANYANG (BMRS -250)
|
|
Traveling motor
|
SANYANG (BMT-245)
|
|
Travel speed
|
1.5kmv/h
|
|
Overall dimension( LxWWxH)
|
2775 x 930 x 2219 mm
|
|
Wheelbase
|
910 mm
|
|
Total length of track
|
1230mm
|
|
Platiorm ground dearance
|
380 mm
|
|
Platform back tuming radius
|
784mm
|
|
Chassis widh
|
896mm
|
|
Track width
|
180 mm
|
|
Chassis ground clearance
|
132mm
|
|
Track height
|
320 mm
|
|
Max. Digging depth
|
1650 mm
|
|
Max. Vertical digging depth
|
1375 mm
|
|
Max. Digging height
|
2610 mm
|
|
Max. Dumping height
|
1850 mm
|
|
Max. Digging radius on ground
|
2850 mm
|
|
Min. Rotation radius
|
1330 mm
|
|
Max. Upgrade height of blldozer blade
|
345 mm
|
|
Max. Digging depth of bulldozer blade
|
255 mm
|
