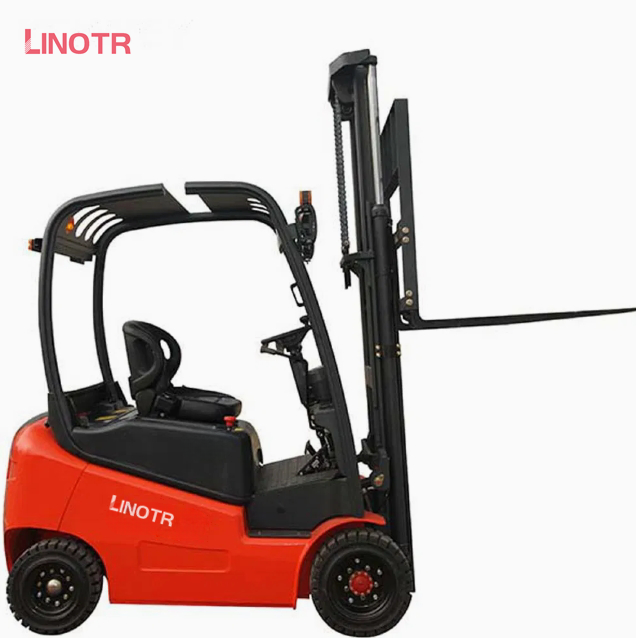

| Model | CPD-10 |
| Rated lifting weight | 1000kg |
| Load center distance | 500mm |
| Dynamic way | battery |
| Driving way | Car type |
| The wheelbase | 1430mm |
| Tire type | Elastic solid tire |
| Number of wheels (front/rear) | 2/2 |
| Before the wheel track |
1050mm
|
|
After the wheel track
|
950mm
|
|
Height of door frame when retracting
|
2150mm
|
|
Maximum lifting height
|
3000mm
|
|
Maximum height during operation
|
4050mm
|
|
Height of roof guard
|
2020mm
|
|
The goods fork length
|
1070mm
|
|
Body length (excluding fork)
|
1800mm
|
|
Body width
|
1150mm
|
|
Turning radius
|
1900mm
|
|
Minimum ground clearance
|
150mm
|
|
The whole weight of
|
1500kg
|
|
Drive motor
|
2.5KW
|
|
The oil pump motor
|
1.5KW
|
|
Drive motor control mode
|
AC
|
|
Oil pump motor control mode
|
AC
|
|
Turned to the way
|
Hydraulic booster
|
