CPCG-35 3.5T Dual Fuel LPG Forklift Truck
No.CPCG-35
Description
| Model : CPCG-35 |
| Fuel type |
- |
- |
LPG/GASOLINE |
| Load capacity |
- |
kg |
3500 |
| Load center |
- |
mm |
500 |
| Lift height |
- |
mm |
3000 |
| Full free lift height |
- |
mm |
100 |
| Fork dimension |
- |
mm |
1070×125×50 |
| Mast tilting angle |
Front/Rear |
Deg. |
6/12 |
| Min. turning radius |
- |
mm |
2450 |
| Ground clearance |
- |
mm |
135 |
| Overhead guard height |
- |
mm |
2165 |
| Front overhang |
- |
mm |
490 |
| Max. travel speed |
Full load |
km/h |
20 |
| Max. lift speed |
Full load |
mm/s |
480 |
| Max. traction power |
Full load |
KN |
22 |
| Max. gradeability |
- |
% |
20 |
| Total length |
With fork |
mm |
3770 |
| Total length |
Without fork |
mm |
2700 |
| Total width |
- |
mm |
1225 |
| Mast extended height |
- |
mm |
4265 |
| Mast lowered height |
- |
mm |
2060 |
| Tyres |
Front |
- |
28x9-15-12PR |
| Tyres |
Rear |
- |
6.50-10-10PR |
| Wheelbase |
- |
mm |
1700 |
| Tread |
Front/Rear |
mm |
1000/970 |
| Service weight |
- |
Kg |
4780 |
| Battery |
- |
V/Ah |
12/80 |
| Motor |
Model |
- |
NISSAN GK25 |
| Transmission |
- |
- |
Hydraulic, 1/1 |
| Operating pressure |
- |
Mpa |
18.5 |

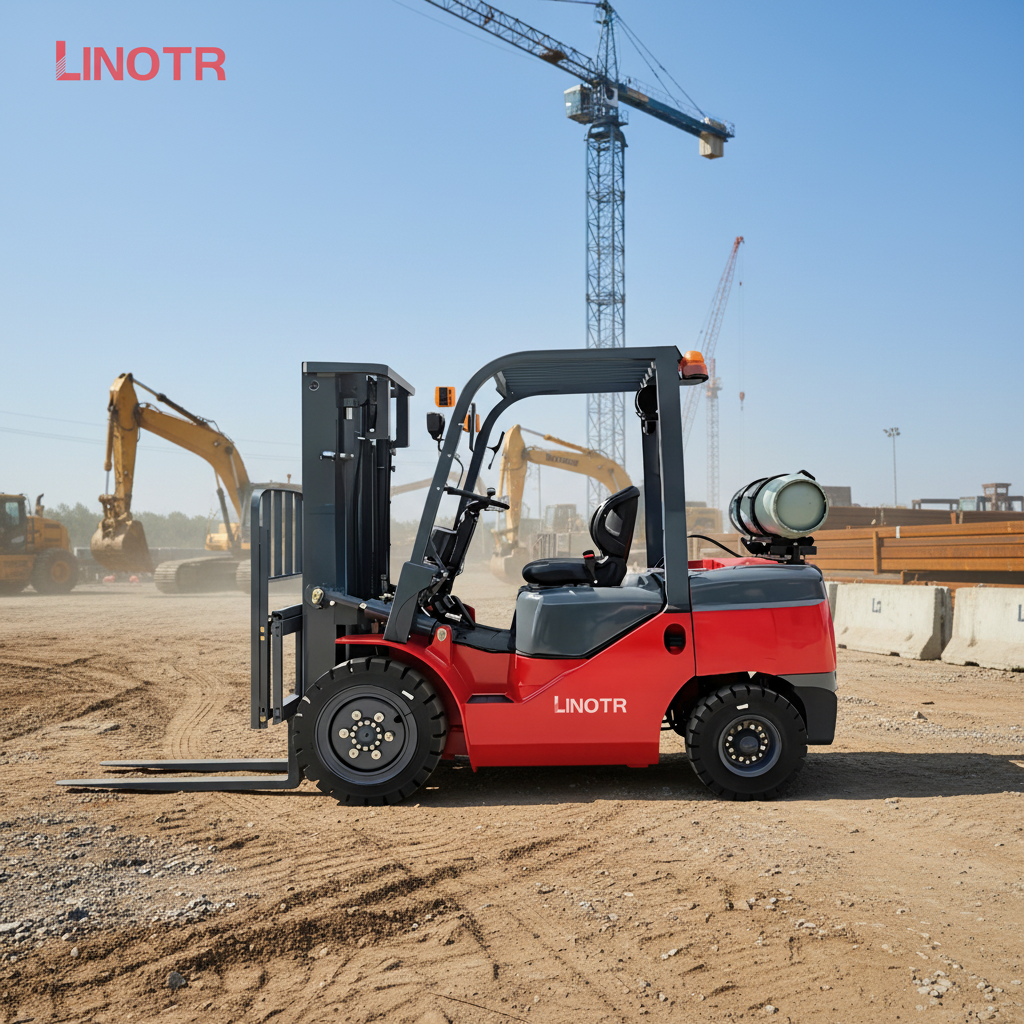

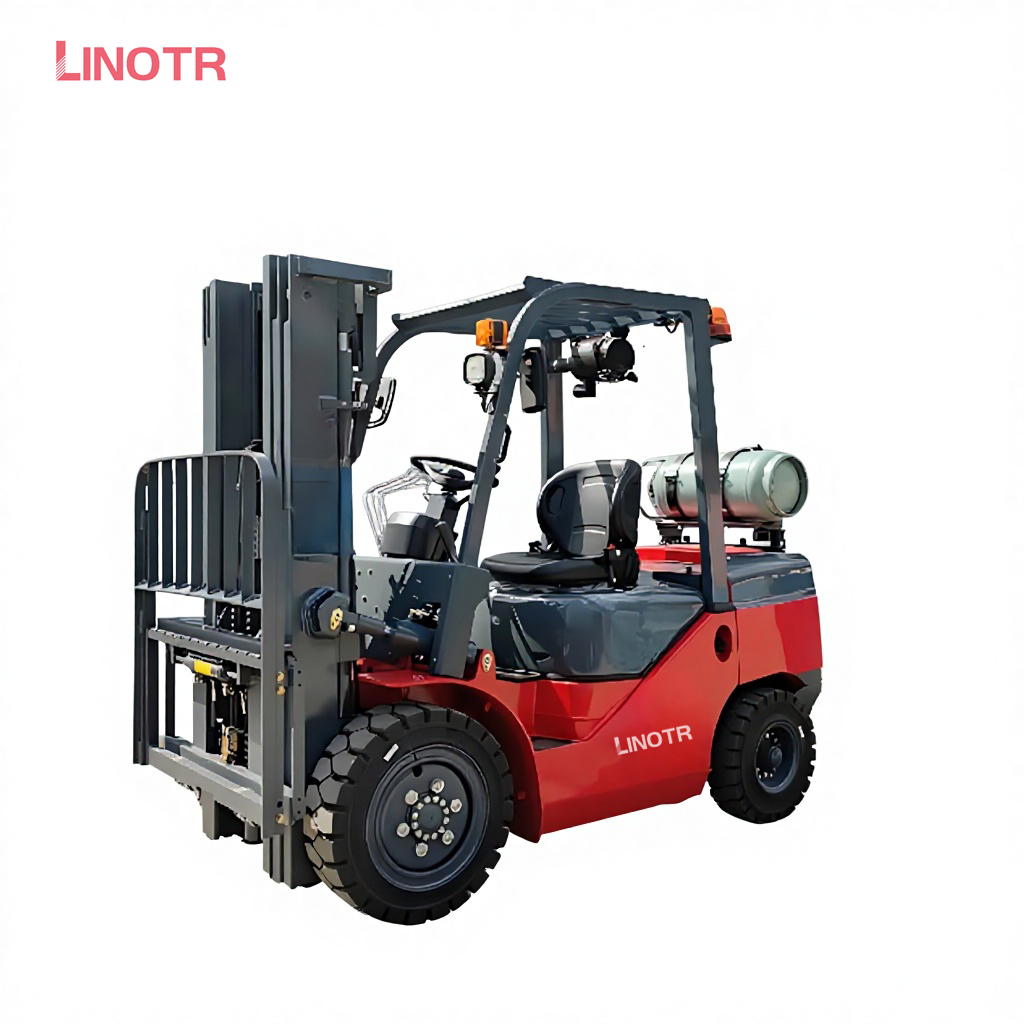

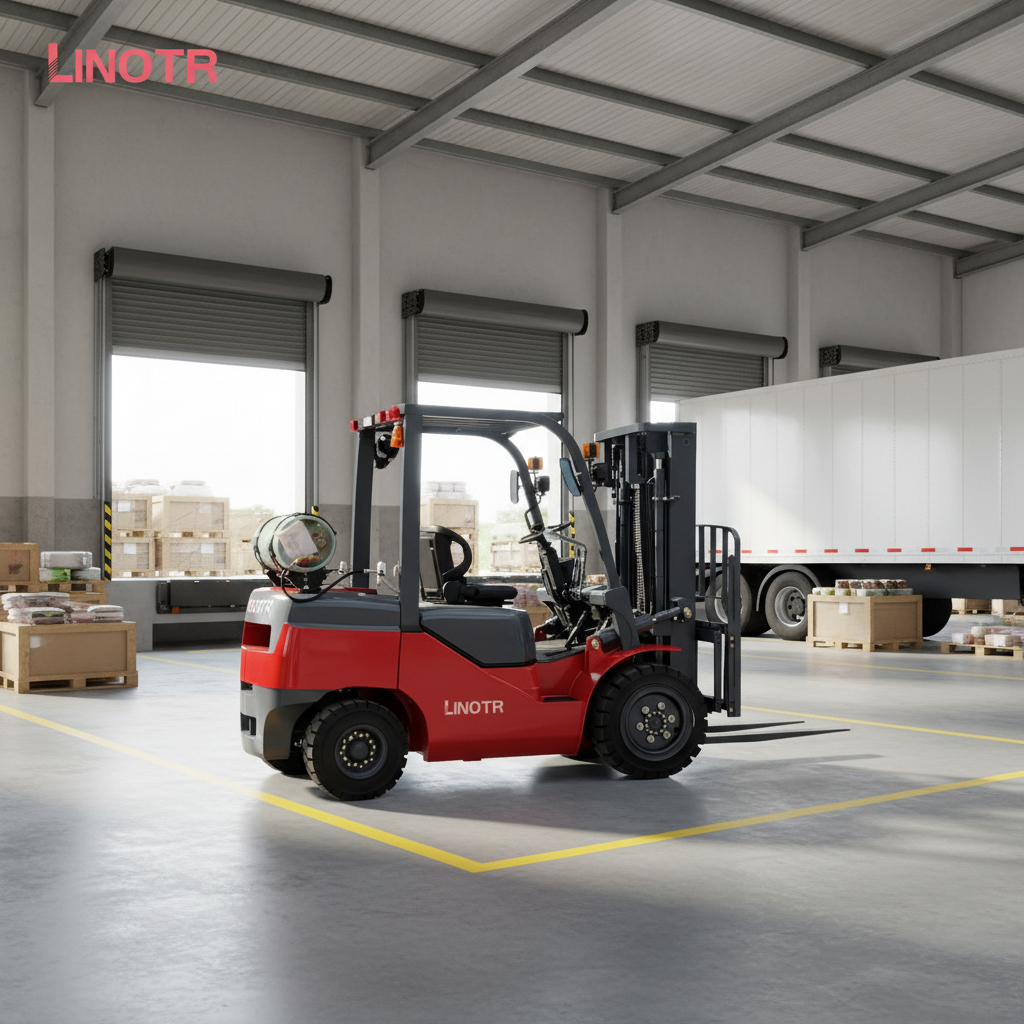

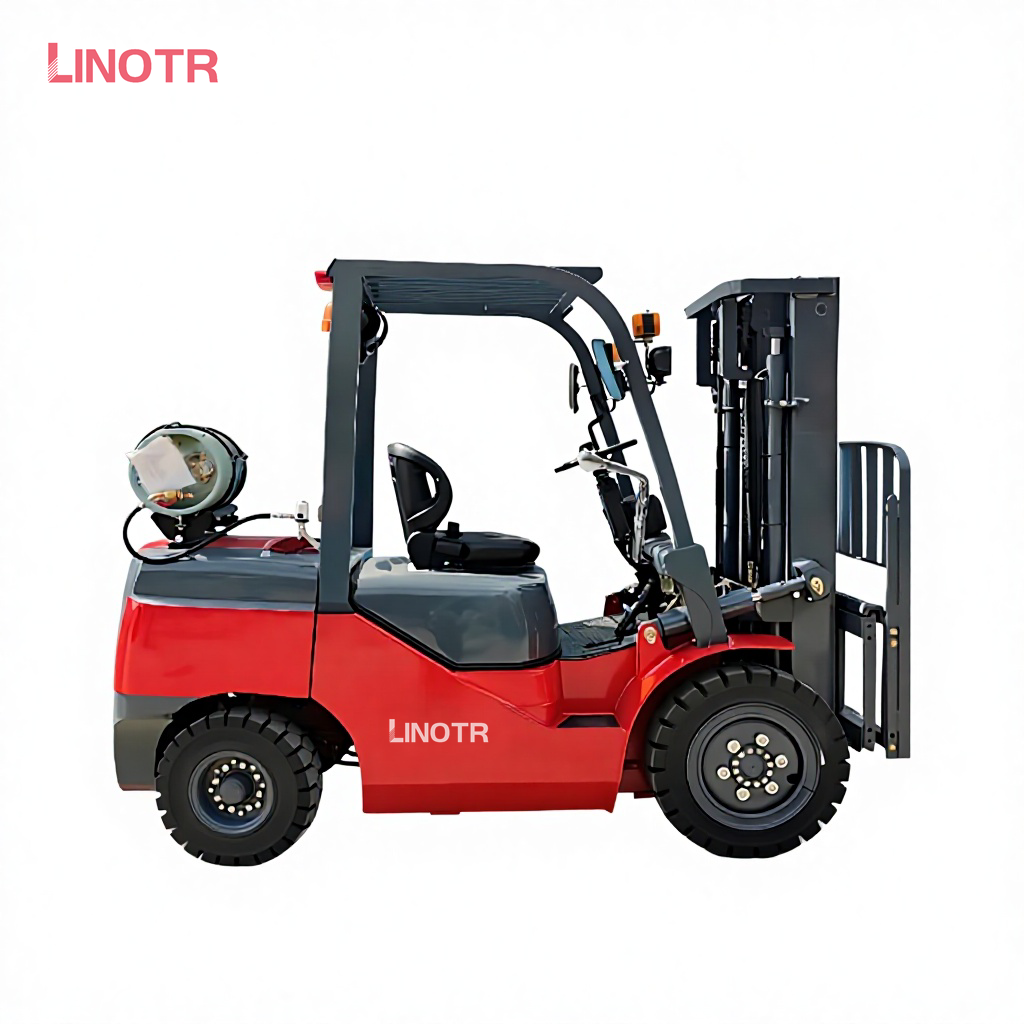

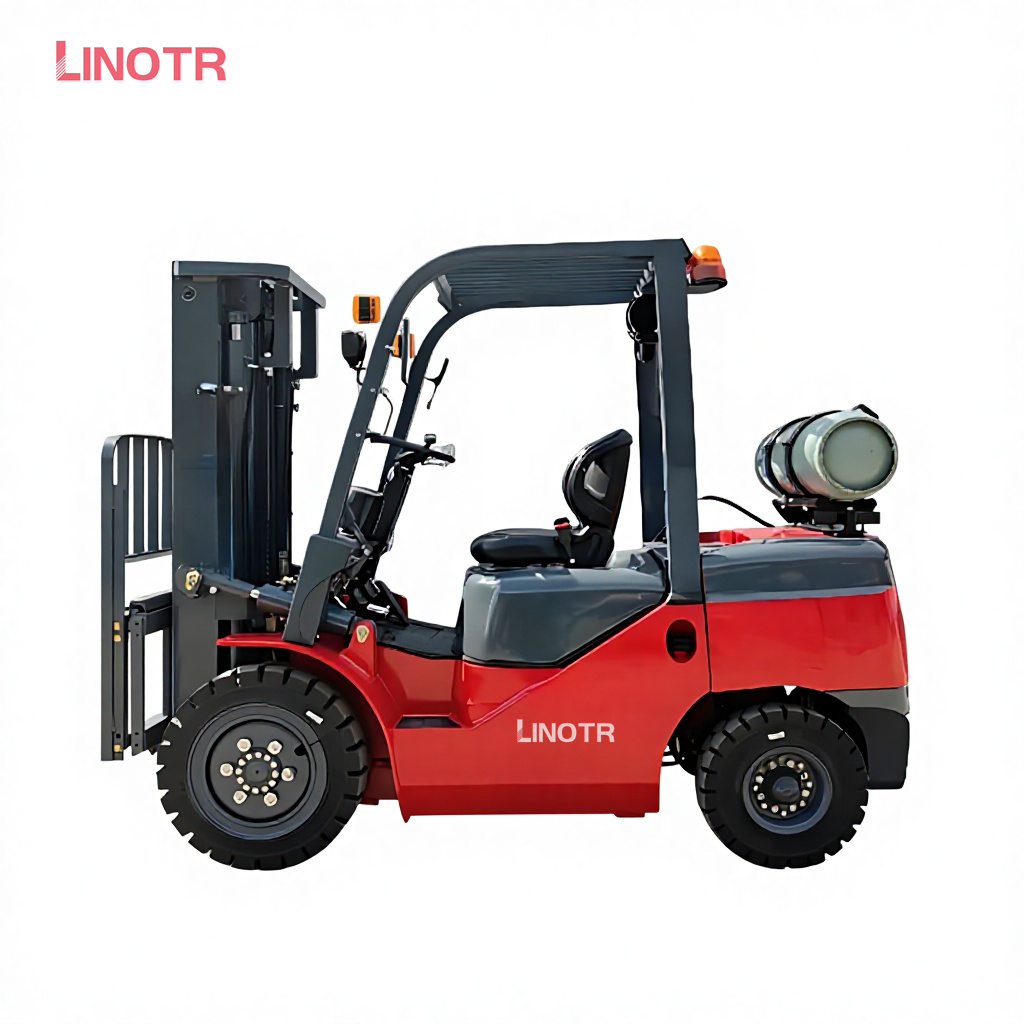

CPCG-35 Dual Fuel LPG Forklift Truck Images
