CPCG-25 2.5T Dual Fuel LPG Forklift Truck
No.CPCG-25
Description
| Model : CPCG-25 |
| Fuel type |
- |
- |
LPG/GASOLINE |
| Load capacity |
- |
kg |
2500 |
| Load center |
- |
mm |
500 |
| Lift height |
- |
mm |
3000 |
| Full free lift height |
- |
mm |
100 |
| Fork dimension |
- |
mm |
1070×122×40 |
| Mast tilting angle |
Front/Rear |
Deg. |
6/12 |
| Min. turning radius |
- |
mm |
2240 |
| Ground clearance |
- |
mm |
120 |
| Overhead guard height |
- |
mm |
2160 |
| Front overhang |
- |
mm |
450 |
| Max. travel speed |
Full load |
km/h |
19 |
| Max. lift speed |
Full load |
mm/s |
500 |
| Max. traction power |
Full load |
KN |
18 |
| Max. gradeability |
- |
% |
20 |
| Total length |
With fork |
mm |
3650 |
| Total length |
Without fork |
mm |
2580 |
| Total width |
- |
mm |
1160 |
| Mast extended height |
- |
mm |
4220 |
| Mast lowered height |
- |
mm |
2060 |
| Tyres |
Front |
- |
7.00-12-12PR |
| Tyres |
Rear |
- |
6.00-9-10PR |
| Wheelbase |
- |
mm |
1600 |
| Tread |
Front/Rear |
mm |
970/970 |
| Service weight |
- |
Kg |
3880 |
| Battery |
- |
V/Ah |
12/80 |
| Motor |
Model |
- |
NISSAN GK25 |
| Transmission |
- |
- |
Hydraulic, 1/1 |
| Operating pressure |
- |
Mpa |
18.5 |

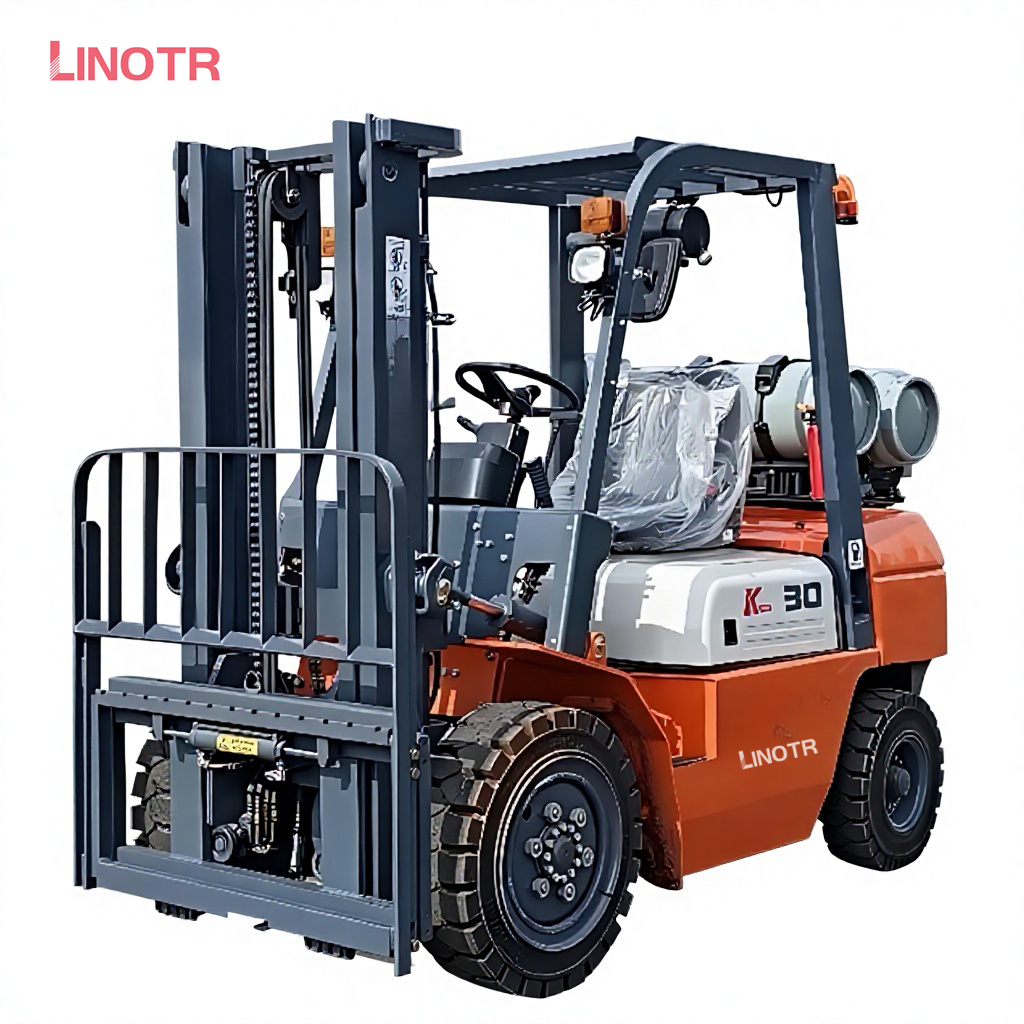

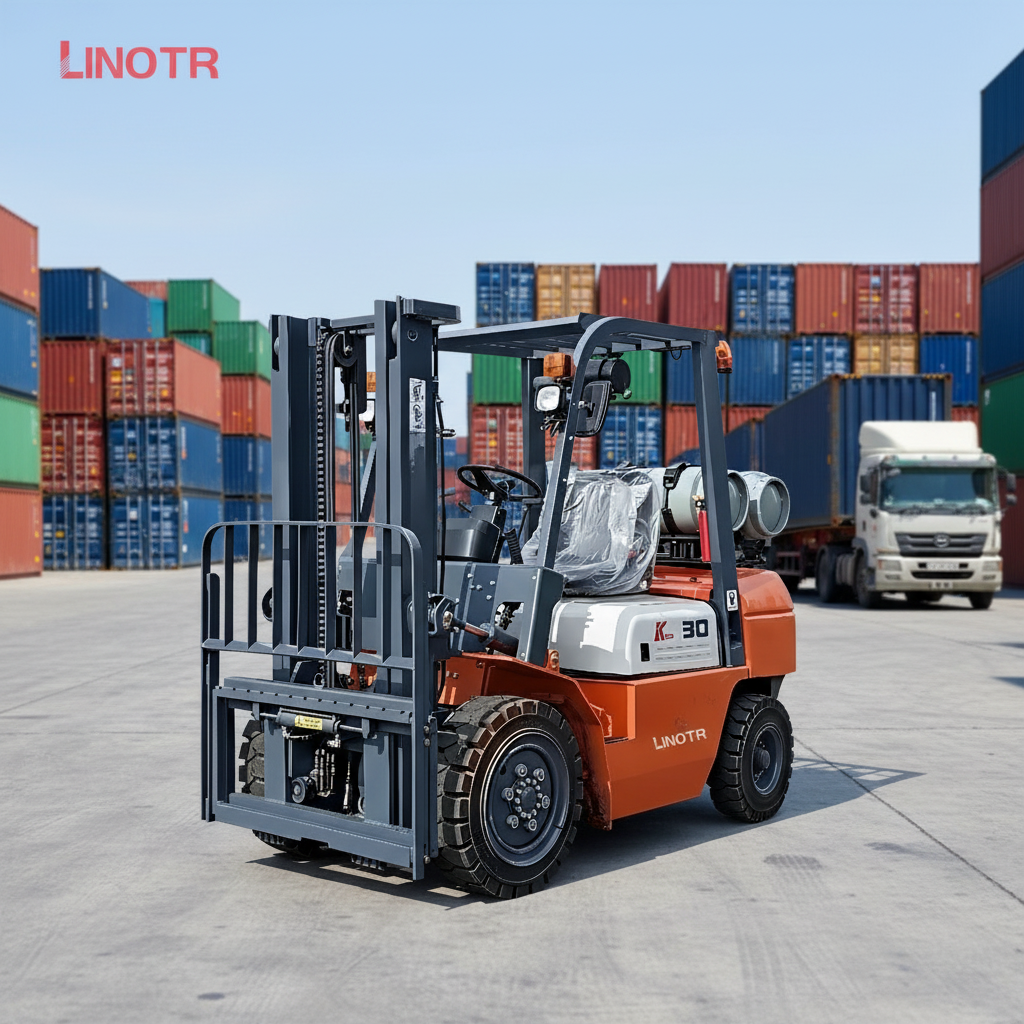

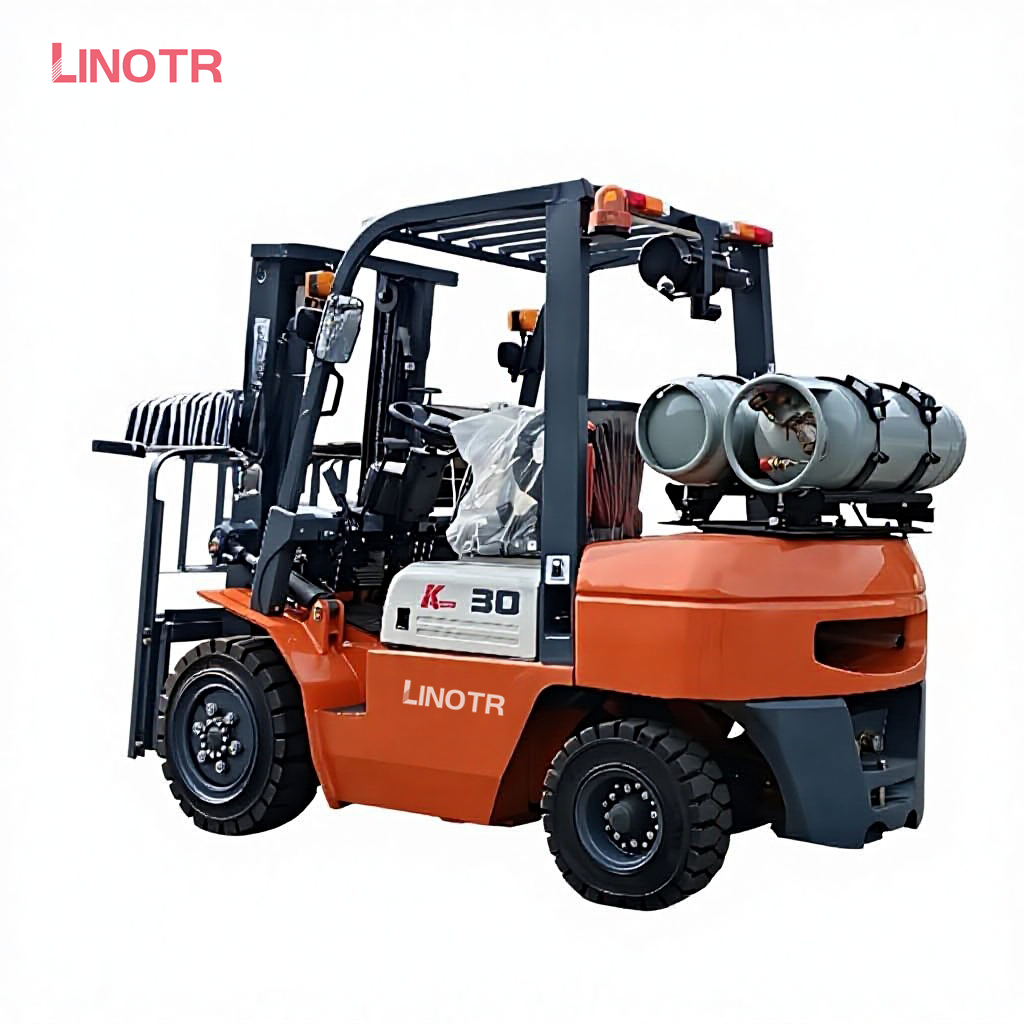

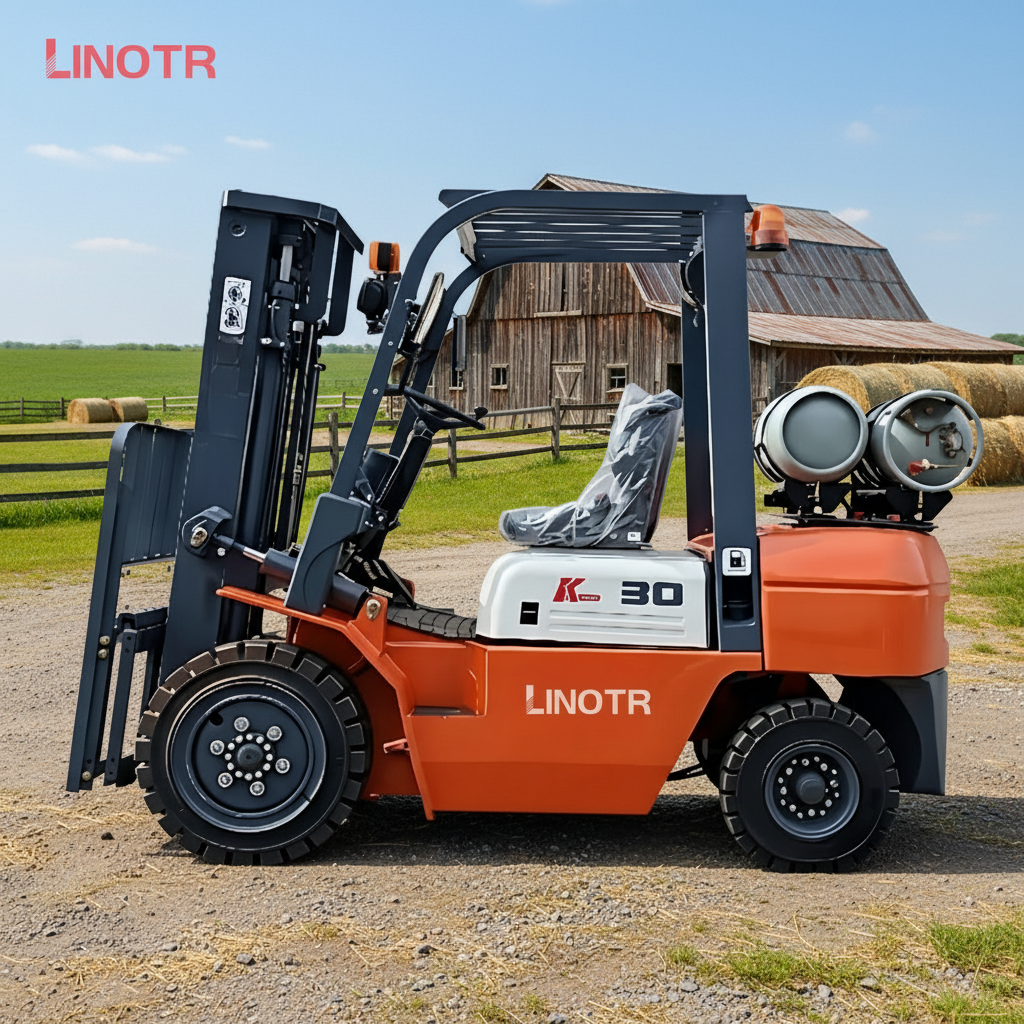

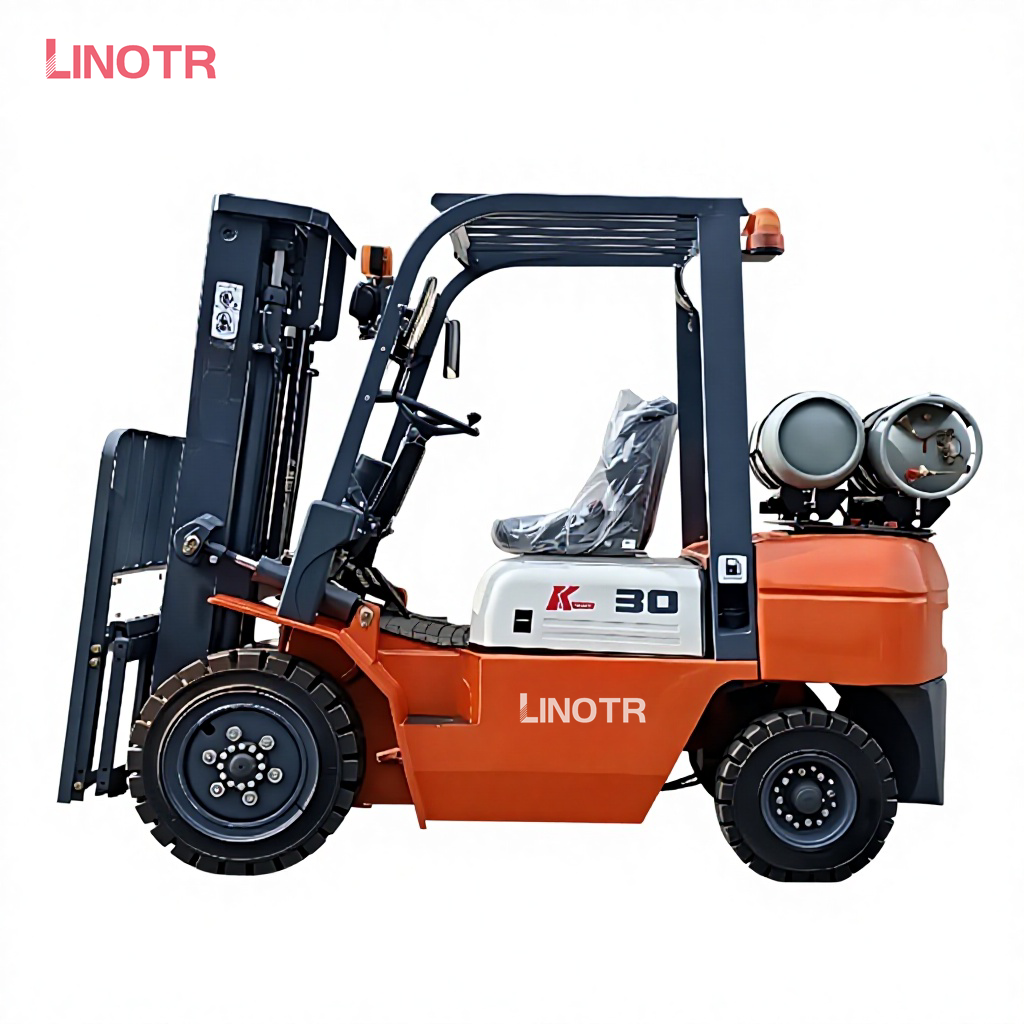

CPCG-25 Dual Fuel LPG Forklift Truck Images
