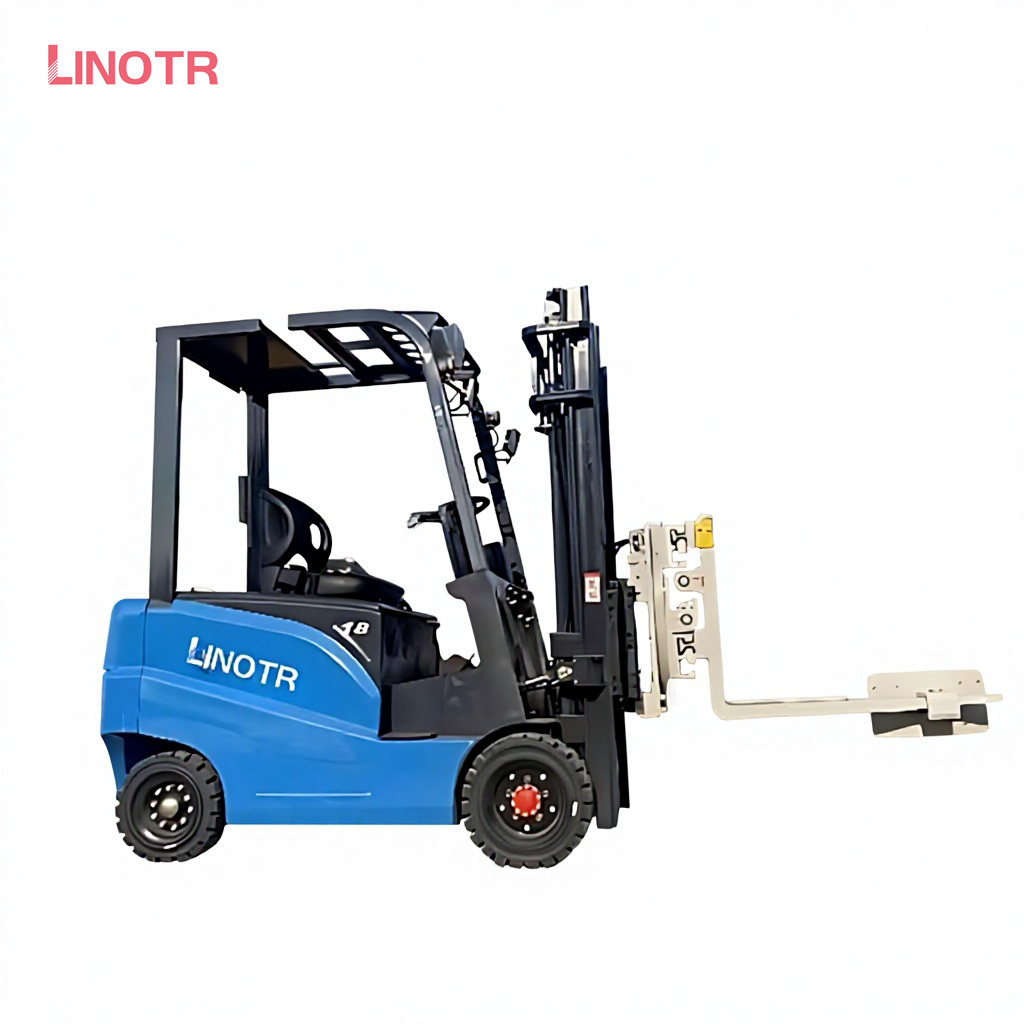

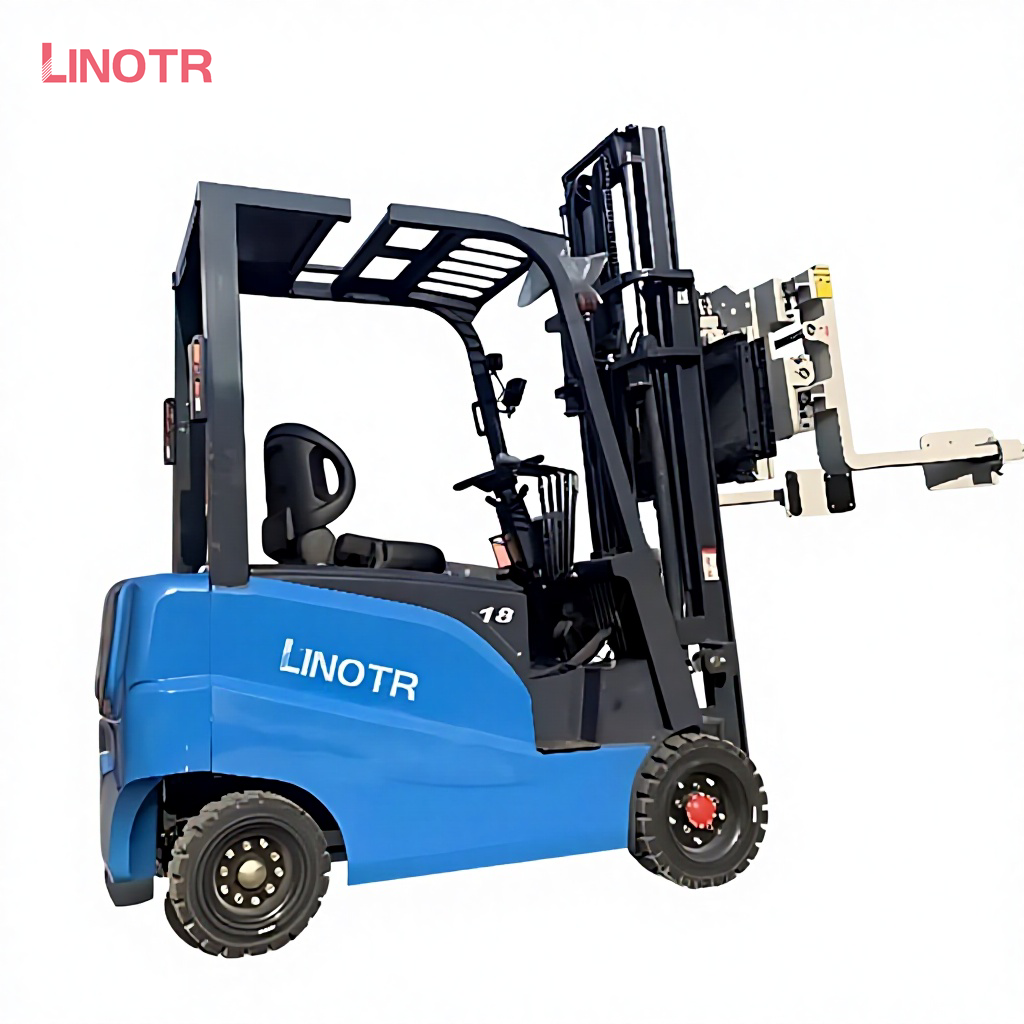

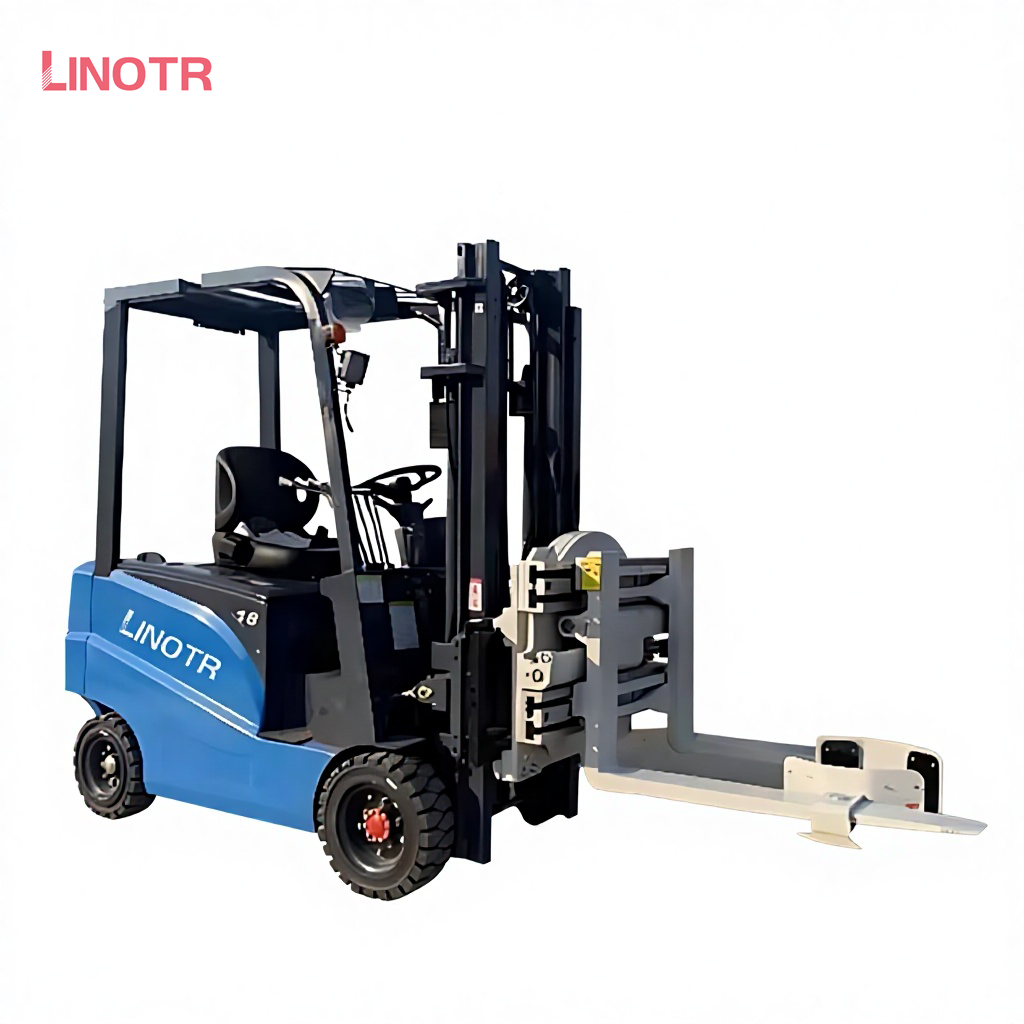

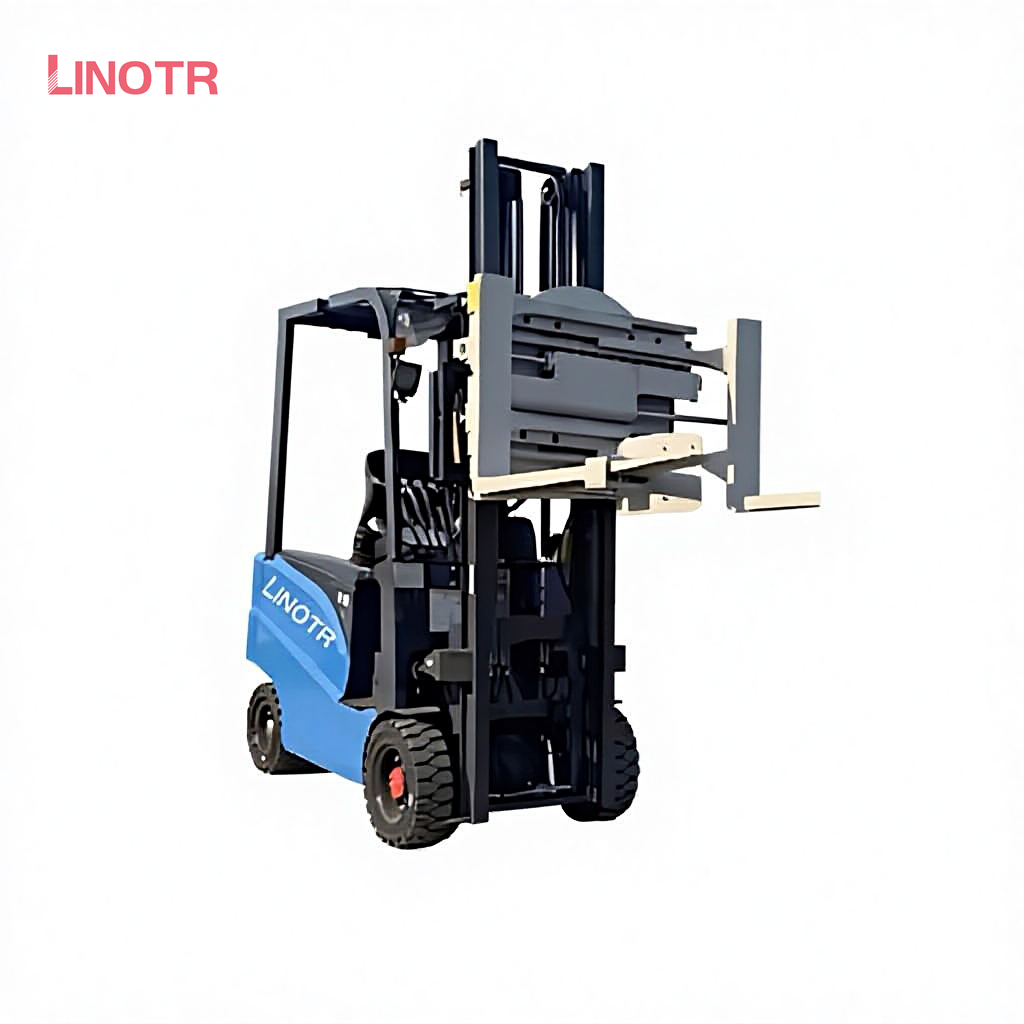

Name: 1.5t 2t 3t 3.5t Electric Forklift Full Electric Pallet Truck Lead Acid Battery Forklift 3 Stage Mast
Brand: Forklift
Availability: InStock
Rating: 5 (1 reviews)

Description

Built for Efficient Material Handling in Compact Industrial Environments
This electric forklift is designed for businesses that need dependable indoor and warehouse lifting performance across multiple load classes, with available capacities of 1.5t, 2t, 3t, and 3.5t to match different operating demands. As a practical small electric forklift solution, it supports cleaner operation, controlled handling, and improved maneuverability in tighter working areas where diesel equipment may be less suitable. The 3 stage mast structure helps operators manage higher stacking requirements while maintaining strong visibility and stable lifting performance, making it a well-suited option for distribution centers, factory workshops, logistics hubs, and storage facilities focused on productivity, space efficiency, and lower on-site emissions.

Verified Supply Capability with Battery-Powered Configuration and Export Standards
Backed by source information that includes origin in China, LINOTR branding, model coverage from CPD16 to CPD50, and certifications such as CE, ISO, and SGS, this unit offers procurement teams clear evidence of export readiness and manufacturing compliance. The lead acid battery configuration supports established charging and maintenance workflows preferred by many industrial users seeking a proven power system with controlled operating cost. With a minimum order quantity of 1 unit, delivery time of 7-10 working days, payment terms including L/C, T/T, and D/P, plus a monthly supply ability of 100 units, this product is positioned by experienced electric forklift manufacturers and an established electric forklift supplier to support both single-unit replacement needs and planned fleet purchasing.

Practical Choice for Warehousing, Fleet Planning, and Stand-Up Operation Needs
For buyers comparing equipment across handling intensity, operator format, and facility layout, this forklift offers strong real-world relevance as a flexible warehouse asset. It is especially valuable for operations evaluating a stand up electric forklift for frequent stop-and-go tasks, aisle work, and loading zone movement where operator efficiency and responsive control matter. Procurement managers, dealers, and rental companies can also benefit from the broad tonnage range and standardized commercial terms when sourcing from dependable stand up electric forklift manufacturers or building a balanced electric fleet. Whether used in manufacturing supply chains, pallet transfer operations, or export-oriented warehouse systems, this model provides a reliable and efficient solution for businesses that need stable lifting performance, practical sourcing conditions, and scalable equipment support.

Key Advantages

Stable Lifting Structure
This electric forklift uses a 3 stage mast and lead acid battery system to support stable lifting performance in daily warehouse and factory handling tasks. For B-end buyers, this structure is a real advantage because it helps balance lifting height, load capacity, and equipment stability in narrow working spaces. The 1.5t, 2t, 3t, and 3.5t configurations make it practical for different load plans, while the full electric drive reduces dependence on fuel equipment and supports more consistent indoor operation.

Practical Maintenance and Supply Support
For buyers comparing electric forklift manufacturers and selecting a reliable electric forklift supplier, maintenance convenience and supply stability directly affect equipment uptime. This model uses a mature lead acid battery solution that is easier to service and manage in many industrial sites with existing battery maintenance routines. CE, ISO, and SGS certifications also provide a factual basis for procurement review, while the available model range supports replacement planning and batch purchasing for fleets that need stable long-term use.

Electric Forklift Features:

High safety:

1. Standard steering wheel start steering function to reduce steering operation steps. 2. A wide-view mast is standard to enhance the driving experience, and the mast and hose pulley are more compact. 3. The large arc top guard and the grid frame with better angle increase the driver's upper field of vision. 4. Optimized battery layout and counterweight design to increase rear vision. 5. The operating space under the foot increases, the accelerator pedal area increases, and the brake pedal area increases.

Simpler maintenance:

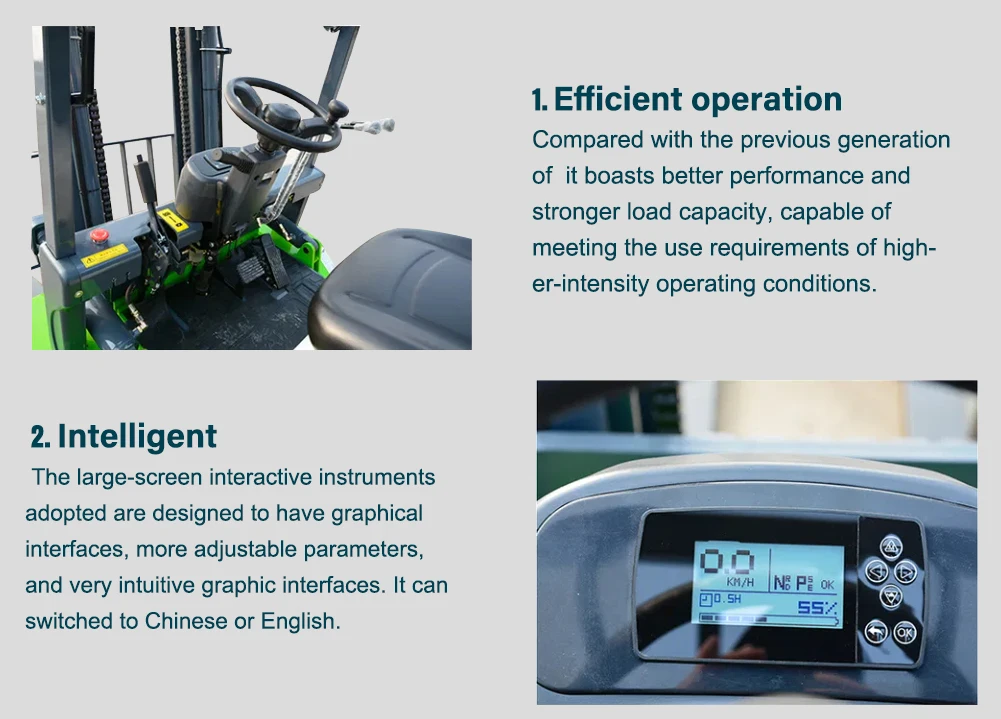

1. Equipped with a large-screen LCD display instrument, which can intuitively display the vehicle running status, with fault display and misoperation alarm functions. 2. Remove the rear cover of the counterweight, and you can directly inspect the electrical control.

High reliability:

1. Both driving and pump motors are maintenance-free AC motors. 2. International famous brand electric motor controller (SANTROLL, INMOTION, ZAPI, CURTIS, etc.), which is superior in intelligence. 3. Long operational life.

Environment Friendliness:

1. Zero emission, no pollution. 2. Low noise, quiet. 3. Energy efficiency, super low cost power consumption. 4. Professional matching design of vehicle components, with the use of AC controlling renewable energy technologies, the forklift is more energy saving, and working hour of the battery life is extended by about 10%~15%.

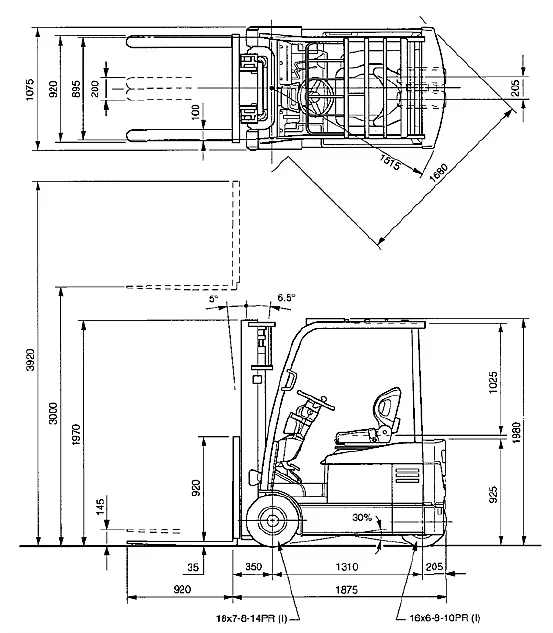

Model			CPDE16	CPD16	CPDE20	CPD20	CPD25	CPD30	CPD35
Power type			Battery	Battery	Battery	Battery	Battery	Battery	Battery
Rated load		KG	1500	1600	2000	2000	2500	3000	3500
Load center distance		mm	500	500	500	500	500	500	500
Driving type			Seat	Seat	Seat	Seat	Seat	Seat	Seat
Length	With fork L1	mm	3040	3040	3120	3380	3550	3850	3850
Length	Without fork L2		1970	1970	2050	2310	2480	2780	2780
Whole Width B			1000	1000	1050	1150	1180	1270	1270
Height	Height no lifting frame		1960	1960	2000	2000	1995	2070	2070
	Top frame height		2010	2010	2000	2145	2210	2205	2205
	Max Height working		4050	4050	3850	3995	4100	4055	4055
Distance from seat to top light			1000	1000	1020	1020	1070	972	972
Wheel base L4			1260	1260	1400	1515	1650	1830	1830
Front overhang Y			385	350	320	483	410	475	475
Back overhang L5			365	365	330	400	420	490	490
Front wheel tread R			1010	1010	880	970	1000	996	996
Back wheel tread P			100	100	830	950	945	968	968
Min Floor clearance F			130	130	100	135	110	115	115
Max lifting height H			3000	3000	3000	3000	3000	3000	3000
Free lifting height H4			40	40	80	170	150	145	145
Fork changing S			1040/200	1040/200	925/200	1024/200	1024/200	250~1100	250~1100
Min Turning radius			2100	2100	1950	2050	2285	2500	2500
Min Right angle aisle width			3850	3850	3400	3760	3995	4275	4275
Frame angle a/β		(°)	6/12	6/12	6°/12°	6°/12°	6°/10°	5°/10°	5°/10°
Max lifting speed load		mm/s	300	300	350	400	280	350	350
Max lifting speed unload		mm/s	260	260	300	300	260	280	280
Max speed load		Km/h	14	14	15	15	14	15	15
Max speed with unload		Km/h	13	13	14	14	13	14	14
Max climbing angle		%	≤15	≤15	≤10	≤15	≤15	≤15	≤15
Service weight		Kg	2650	2790	3200	4050	3650	4000	4150
Driving Wheel			2/2	2/2	2x/2	2x/2	45324	45324	45324
Tyre model			Solid tyre	Solid tyre	Solid tyre	Solid tyre	pneumatic tyre	pneumatic tyre	pneumatic tyre
Front Tyre			18×7-10	18×7-10	18*7 -10	7.00-12	6.50-10	28x9-15	28x9-15
Rear Tyre			16×6-8	16×6-8	18*6-8	18x7-8	18×7-8	18x7-8	18x7-8
Brake type			Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal	Hydraulic Pedal
Hand Brake			M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand	M-Hand
Battery Volt/ capacity		V/Ah	48V/230	48V/320	48/400	48/500	48/300	80V/300	80V/300
Driving motor power		Kw	6.5AC	6.5AC	7.5AC	11AC	7.5AC	10AC	10AC
Pump power		Kw	5.5DC	10AC	10AC	12.0AC	10DC	12DC	12DC

Use Scenarios

Warehouse Racking and Internal Transfer
In warehouse environments with storage racks, loading zones, and frequent pallet movement, operators often need a small electric forklift that can handle indoor transport while maintaining stable lifting control. This product serves that role by combining full electric travel with a 3 stage mast, making it well-suited for moving palletized goods between receiving, storage, and picking areas. It fits this scenario because it supports regular stop-and-go work, helps reduce emissions in enclosed spaces, and provides practical load capacity options for different warehouse throughput levels.

Factory Workshops and Stand-On Handling Tasks
In manufacturing workshops and material preparation areas, users may need a stand up electric forklift for repeated short-distance handling between production lines, buffer zones, and packing stations. This truck works effectively in that setting because it supports frequent movement cycles and stable pallet handling where space efficiency and operational continuity matter. For procurement teams evaluating stand up electric forklift manufacturers, this model is well-suited to industrial use because it offers practical electric power, a structure designed for regular material flow, and specifications that can match different workshop load requirements.

FAQ

Q1. What load capacities are available for this electric forklift?
The available configurations cover 1.5t, 2t, 3t, and 3.5t capacities. As an electric forklift supplier, we help procurement teams match the rated capacity to their handling plan and confirm the correct model range from CPD16 to CPD50 before order placement.

Q2. What mast configuration does this forklift use?
This unit is specified with a 3 stage mast. For customers comparing a small electric forklift with higher-lift warehouse equipment, we can confirm the mast type in our quotation and technical documentation so your team can review application fit before purchase.

Q3. What battery type does this electric forklift use?
The product is configured with a lead acid battery. In industrial fleets, this is a practical choice when buyers require a clearly defined battery type for maintenance planning. We can confirm the battery configuration with the selected model during the order process.

Q4. What certifications do you provide with this equipment?
Standard certification includes CE, ISO, and SGS based on the provided product information. As one of the electric forklift manufacturers serving export buyers, we provide certification details for compliance review and support formal supplier qualification procedures.

Q5. Can you support trial orders or scheduled bulk procurement?
Yes, we accept orders from 1 unit, with a supply ability of 100 units per month and a delivery time of 7-10 working days. For buyers sourcing from stand up electric forklift manufacturers or standard electric forklift lines, we can discuss order scheduling and payment terms including L/C, T/T, and D/P.
